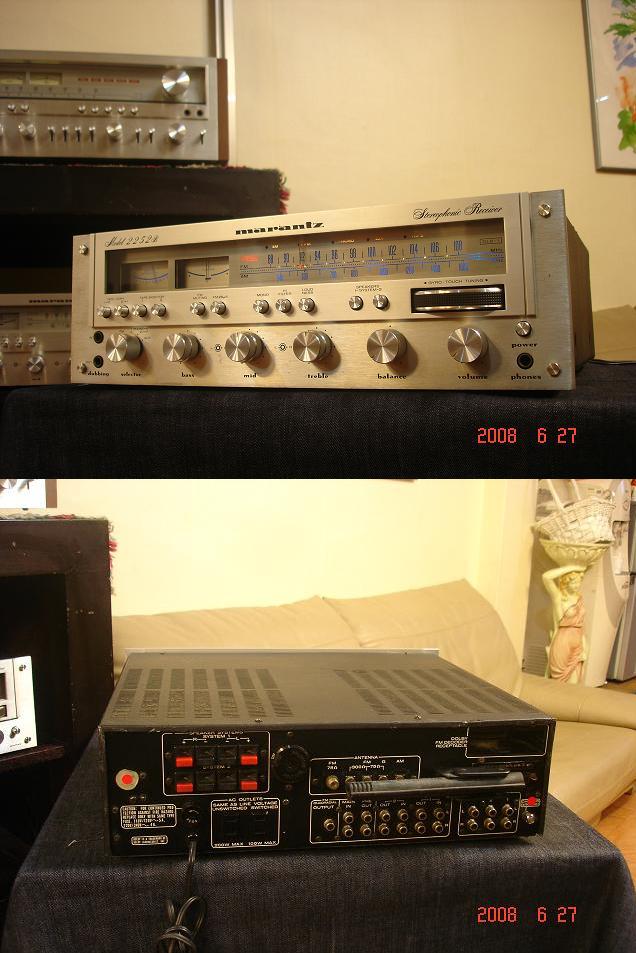

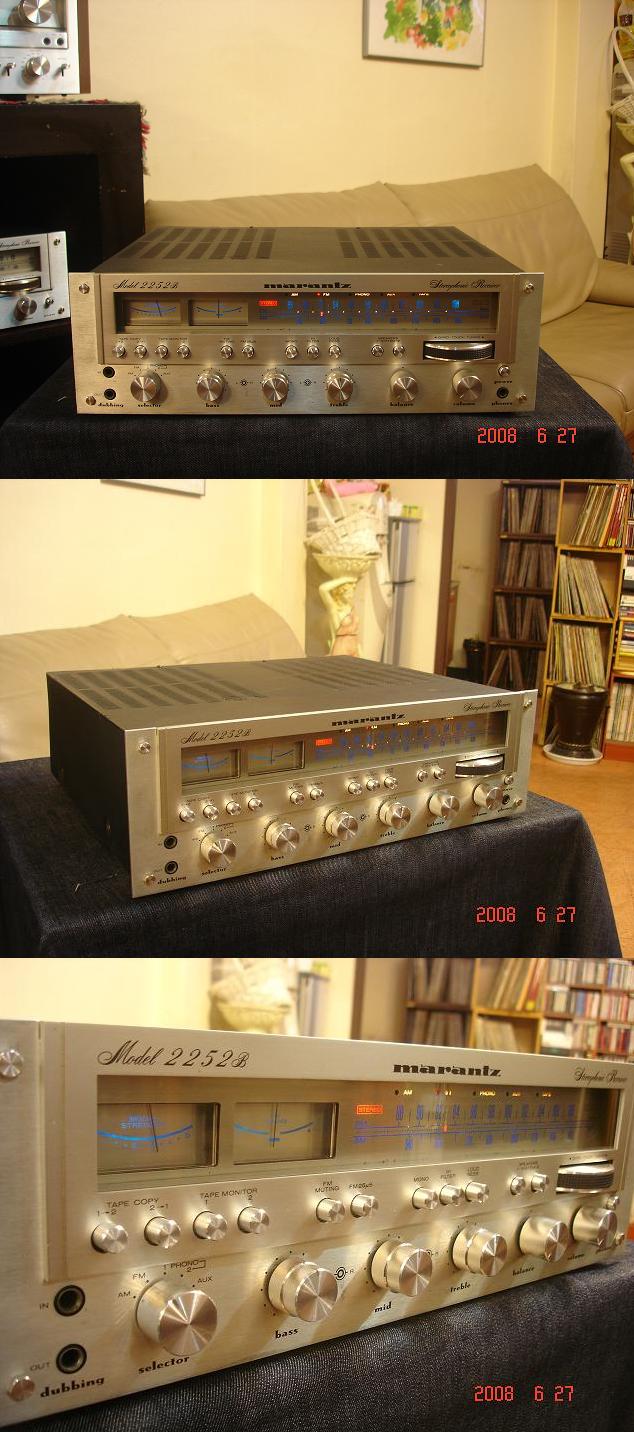

마란츠 2252B 리시버 입니다.(ending)

마란츠 2252B 리시버 엠프입니다. 상급 버전의 2325,2330,2285 등 리시버들이 귀했을 시절에

가격대비 성능이 좋아 매니아 층에서 상당히 많이 사용됐던 명기 리시버 입니다. 출력에

비하여 밀도감 있는 음색과 뛰어난 뎀핑능력을 보여주는 리시버로 보셔도 될듯하며 사진과

같이 상태는 내/외관 생활감 약간씩 있지만 양호하며. 내부역시 많은 비용줘서 제대로

오버홀 받은 제품입니다. 오리지널 마란츠 각인 켄TR 4구 그대로 박혀 있습니다.

전원220v 이며 FM스테레오 및 분리 아주좋습니다  체널당52w+52w 의 출력이지만 그보다

더 높은 리시버류 보다  뎀핑능력이 뛰어납니다. 사이즈도 적당하고 보기에도 화사한 매혹

적인 불빛이 일품입니다.



General
Rarity Scarce
Retail Price 460
First Year 1977
Last Year 1979
Wood Case WC-122
Silver Face Yes
Channels Two
Speaker Connections Two sets
Chassis Ground Binding Post
AC Switch Yes
Fusing Rear Panel
Switched AC Outlets One
Unswitched AC Outlets One
Power Consumption 220 watts, 35 @ idle
Special Option 1 DLB1 Dolby FM Decoder (US Models only)



Physical
Width 17 1/4
Height 5 3/8
Depth 14 1/2
Weight 31.2 lbs, 36.7 packed for shipment



Amplifier
RMS Power Per Channel 52x2 @ 8 ohms 65x2 @ 4 ohms
Damping Factor @ Load Impedance 45
Total Harmonic Distortion (THD) 0.05% @ 8 ohms, 0.1% @ 4 ohms
Power Bandwidth 20 hz to 20 khz
Frequency Response +/- 0.2 dB at one wattm 20 Hz to 20 KHz
Intermodulation Distortion (IM) 0.05% @ 8 ohms, .1 @ 4 ohms
Input Impedance 33 Kohms
Input Sensitivity for Full Output 1.5 volts



FM Tuner
Gyro Tuning Yes
RF Sensitivity 1.9 uV
300 Ohm Binding Posts Yes
75 Ohm Binding Posts Yes
75 Ohm F Connector Yes
50 dB quieting sensitivity, Stereo 40 uV
50 dB quieting sensitivity, Mono 3.2 uV
THD, Mono 0.15%
THD, Stereo 0.30%
Frequency Response 30 Hz to 15 KHz, + 0.2 dB, -1.5 dB
Hum and Noise 73 dB
Capture Ratio 1.0 dB
IF Image Rejection 70 dB
IF Rejection 95 dB
Stereo Subcarrier Rejection 60 dB
Alternate Channel Selectivity (wide or normal) 070 dB
Spurious Rejection 90 dB
AM Carrier Rejection 50 dB
Stereo Separation at 1 kHz 45 dB
Mono Switch Yes
Signal Strength Meter Yes
Center Tuning Meter Yes
Stereo Lamp Yes
Dolby Lamp Yes
FM Mode Lamp Yes
Muting Switch Yes
25 uS Deemphasis Switch (Dolby Associated) Yes
Dolby Fm Decoding Option Yes
Illuminated Dial Pointer Yes



AM Tuner
RF Sensitivity 15 uV
Alternate Channel Selectivity 46 dB
IF Rejection 40 dB
Image Rejection 45 dB
THD .5% @ 30% modulation
Signal to Noise Ratio 50 dB
Spurious Response Rejection 60 dB
Signal Strength Metering Yes
External Ferrite Antenna Yes
Antenna binding Posts Yes



Preamplifier
Multiple Bass Adjustments Yes
Multiple Midrange Adjustments Yes
Multiple Treble Adjustments Yes
High Filter Yes
Gain Control Yes
Loudness Contour Yes
Mono Yes
Balance Yes
Tape to Tape Dubbing via front panel jacks; 1-2 or 2-1
Auxillary Input Source Yes
Phono Input Source Yes
2nd Phono Input Source Yes
Illuminated Source Indicators Yes (LED's)
Tuner Source Input AM/FM
Tape Monitor Yes
2nd Tape monitor Yes
Headphone Jack(s) Yes
Speaker Selection Nomenclature System 1,2
